Features

Editor

What the visual editor covers well, and where YAML remains the better tool.

Editor

The visual editor is the fastest way to assemble most cards. It is strongest when the configuration is structured and repeatable.

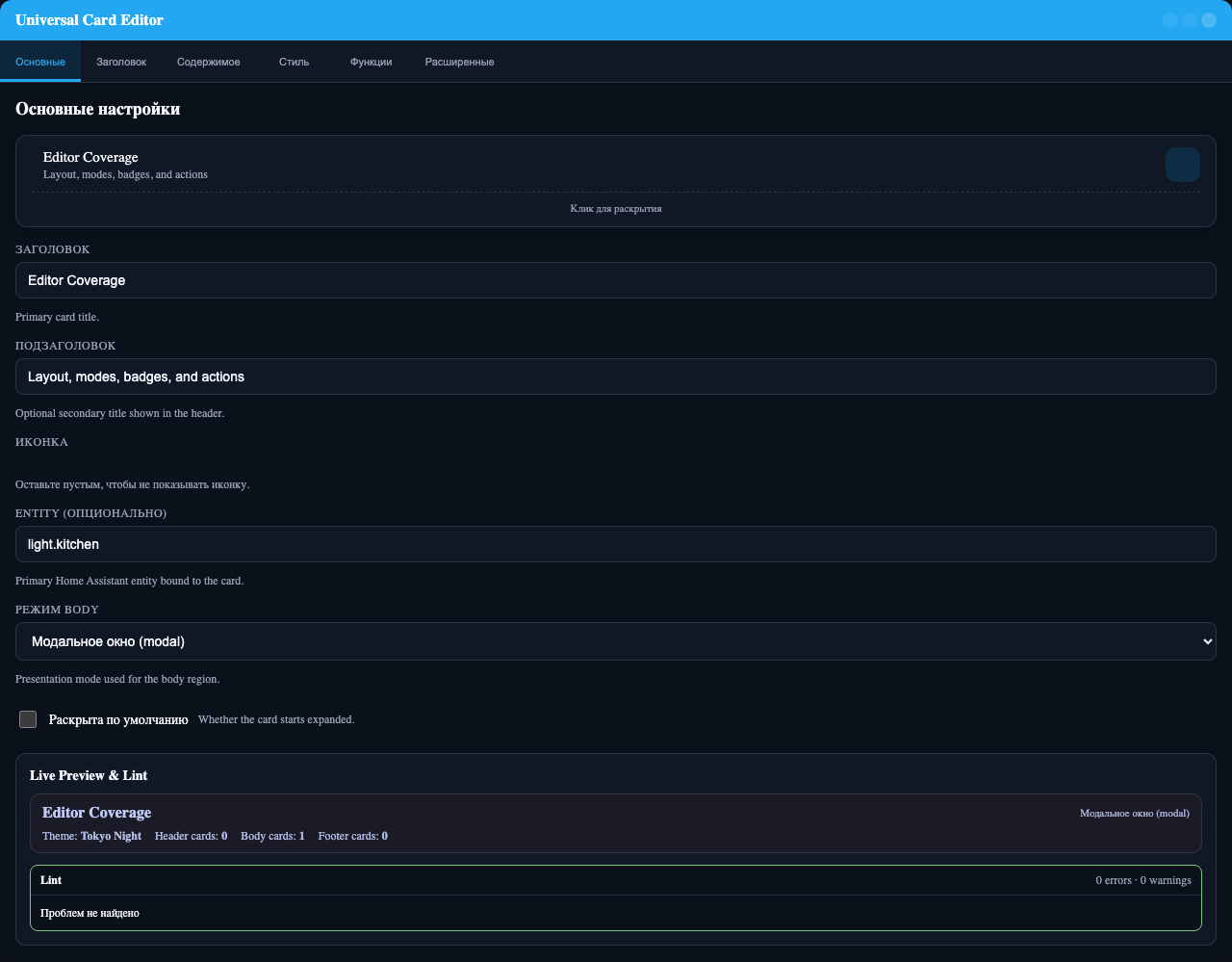

Universal Card editor in dark theme

Main sections

The editor is organized into:

  1. Basic
  2. Header
  3. Body
  4. Style
  5. Features
  6. Advanced

Best-covered areas

Basic shell

  • title
  • subtitle
  • icon
  • icon_color
  • entity
  • theme
  • body_mode

Header and badges

  • header sticky and clickable behavior
  • header.layout.variant
  • header.layout.gap
  • header.layout.content_gap
  • header.layout.align
  • header.layout.badges_position
  • common badge fields
  • badge icon_only
  • badge visibility
  • badge color_rules

Body modes

The editor exposes mode-specific settings when they matter:

  • modal.width, modal.height, modal.max_width, modal.max_height, modal.loading_strategy
  • fullscreen.width, fullscreen.height, fullscreen.max_width, fullscreen.max_height, fullscreen.padding, fullscreen.background, fullscreen.show_close, fullscreen.close_on_escape
  • tabs_config.position, tabs_config.show_icons, tabs_config.show_labels, tabs_config.content_padding, tabs_config.tab_min_width, tabs_config.tab_alignment
  • carousel_autoplay, carousel_interval, carousel_options.show_arrows, carousel_options.show_indicators, carousel_options.loop, carousel_options.swipe_threshold, carousel_options.height
  • subview.path, subview.navigation_path, subview.replace_state, subview.return_on_close

Features and styling

  • root visibility
  • section_visibility
  • swipe.*
  • theme_tokens
  • state_styles

When YAML is better

Use YAML when you want:

  • complex grid.columns strings
  • advanced custom_css
  • large action payloads
  • badge tap_action
  • badge icon_tap_action
  • highly custom nested card compositions
  1. Start in Basic.
  2. Pick the body mode.
  3. Adjust header layout and badges.
  4. Add visibility and swipe only if needed.
  5. Drop to YAML for custom layout strings, advanced actions, or CSS.
